Enter the observation data on the right to see the corresponding station model.

Station model diagram

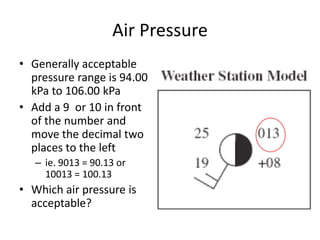

The Station Model: Pressure Tendency The change in surface pressure in the past three hours is plotted numerically and graphically on the lowerand graphically on the lower right of the station model. The pressure rose and then fell over the past three hours, a total ESS124 Prof. JinProf. Jin--Yi YuYi Yu change of 0.3 mb. International Space Station. A truss is a segment or part of the whole Integrated Truss Structure. The trusses are used to support the solar arrays and radiators. The solar arrays provide energy for the Station, and the radiators get rid of extra heat that builds up in the Station. When complete, the Integrated Truss Structure will contain 10 Station Model Lab - 2 - ©HGB 3/27/2000 Procedures Air Pressure: when coding air pressure on a station model, use the following rule: a. if the air pressure on the station model is 500 or more, place a 9 in front of this number. Also put a decimal point in front of the last number EX: 588-- 958.8 millibars b.

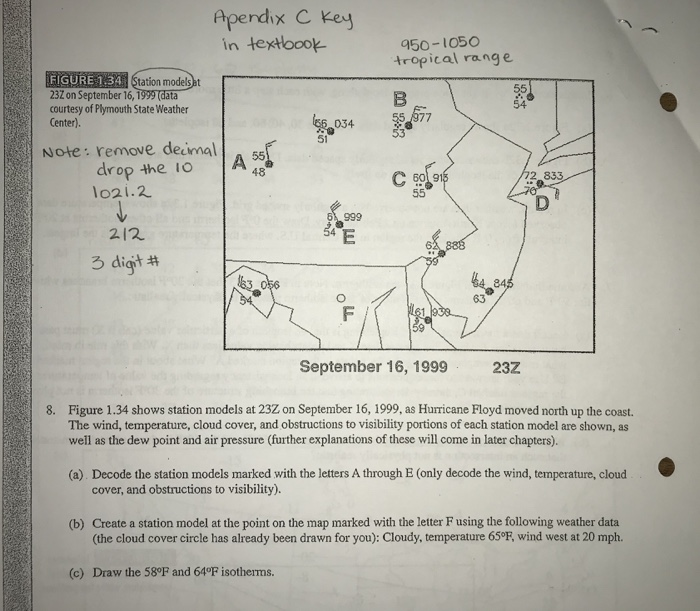

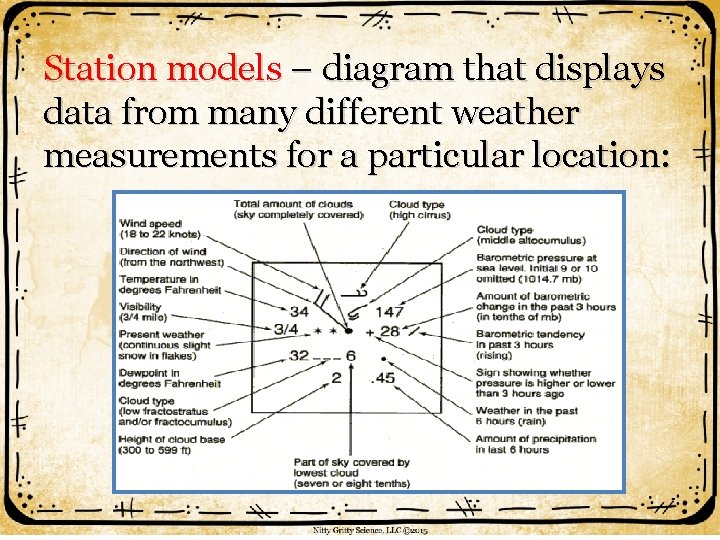

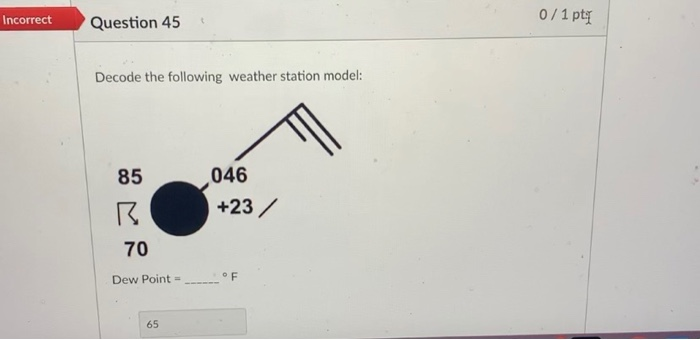

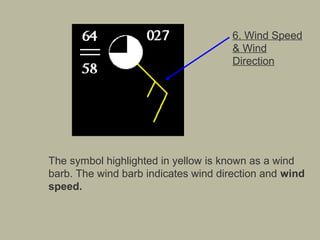

Station model diagram. 4 Which diagram shows surface weather. measurements? A. an infrared satellite image B. an upper air chart C. a station model D. a visible light satellite image The station model is thus marked with an "X" in the sky cover circle to designate that an obstruction prevents the weather observer from observing the rest of the sky. Even if the observer is fairly confident that the sky is overcast, if the ceiling cannot be observed, "sky obscured" would still be reported. In meteorology, station models are symbolic illustrations showing the weather occurring at a given reporting station.Meteorologists created the station model to fit a number of weather elements into a small space on weather maps.This allows map users to analyze patterns in atmospheric pressure, temperature, wind speed and direction, cloud cover, precipitation, and other parameters. Line: 10 kts. Half-Line: 5 kts. If there is only a circle depicted over the station with no wind symbol present, the wind is calm. Below are some sample wind symbols: PRESSURE. Sea-level pressure is plotted in tenths of millibars (mb), with the leading 10 or 9 omitted. For reference, 1013 mb is equivalent to 29.92 inches of mercury.

Jan 14, 2008 · A weather symbol is plotted if at the time of observation, there is either precipitation occurring or a condition causing reduced visibility. Wind is plotted in increments of 5 knots (kts), with the outer end of the symbol pointing toward the direction from which the wind is blowing. The wind speed is determined by adding up the total of flags ... Station Model. 77: Temperature. 68: Dewpoint. 998: Pressure, to the nearest tenth of a millibar. Add either a 10 or 9 in front based on which would bring the value closer to 1000. The pressure here is 999.8 millibars (mb). -03: Pressure tendency the last 3 hours, to the nearest tenth of a millibar. Railway Station [classic] Use Creately's easy online diagram editor to edit this diagram, collaborate with others and export results to multiple image formats. You can edit this template and create your own diagram. Creately diagrams can be exported and added to Word, PPT (powerpoint), Excel, Visio or any other document. The diagram below represents a weather map showing part of the United States. Letters A through E represent weather stations. 5) At which weather station on the weather map is the barometric pressure reading most likely to be 1,018.0 millibars? A) A B) B C) C D) D 6) Which weather station model best represents weather conditions at station B on ...

The end result is an international, team-building experience to construct a 3-D paper model of the Station . With a bit of nylon fishing line or string, the model can hang suspended and seemingly float below the ceiling . Various links to multimedia experiences are included to extend the experi-ence and further bring the Station to life . A key skill in this section is decoding pressure on a station model. Experiment with the station model tool and observe how different pressures are coded. For example, type in pressures of 999.6 mb, 986.2 mb, and 1028.9 mb and see how they appear on the station model. Scale Model Drawing Package. These drawings are intended to be a guide for building a model of the International Space Station. The drawings provide the overall dimensions for all of the major elements as it was originally designed. Some of the elements will not be part of the ISS as foreseen now. Dimensions are given for a 1:100 scale model. A rotation model is when students move between learning stations, either 1. on a ﬁxed schedule, or 2. at the teacher's discretion, where at least one station incorporates online learning.

Station Models Lab MHS | Science - Quizizz

Credit: David Babb. On a station model, reading the temperature is pretty easy. The number located in the upper-left corner of the model is the station temperature expressed in degrees Fahrenheit (or Celsius, depending on the country of origin). In the case of the station model on the right, the temperature is 52 degrees Fahrenheit.

a) Top view of the prefabricated pumping station model; (b ...

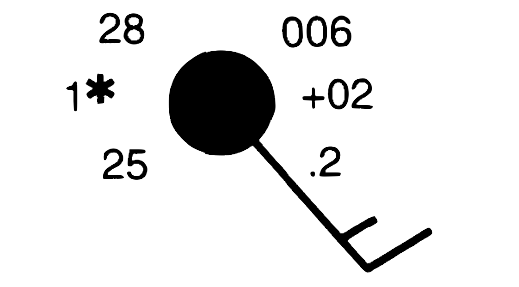

A station model is a diagram that shows coded weather data for each plotted location. The figure below will help to outline some of the atmospheric data commonly depicted on a station model. A more detailed overview of other data that may be included on station models is provided at the end of this lab. 46 996 -11 42 The number in the upper ...

How to Read a Weather Station Model â€“ Step by Step

Station Model Lab - 2 - ©HGB 3/27/2000 Procedures Air Pressure: when coding air pressure on a station model, use the following rule: a. if the air pressure on the station model is 500 or more, place a 9 in front of this number. Also put a decimal point in front of the last number EX: 588-- 958.8 millibars b.
