Example 8 : A system with two blocks, an inclined plane and a pulley. A) free body diagram for block m 1 (left of figure below) 1) The weight W1 exerted by the earth on the box. 2) The normal force N. 3) The force of friction Fk. 4) The tension force T exerted by the string on the block m1. B) free body diagram of block m 2 (right of figure below) An inclined plane, also known as a ramp, is a flat supporting surface tilted at an angle, with one end higher than the other, used as an aid for raising or lowering a load. The inclined plane is one of the six classical simple machines defined by Renaissance scientists. Inclined planes are widely used to move heavy loads over vertical obstacles; examples vary from a ramp used to load goods ...

You will learn how to draw free body diagrams (FBD) when a mass is attached to a string. You will also learn how to draw FBD in case of inclined plane systems

Inclined plane diagram

Figure 5.34 The diagram shows perpendicular and horizontal components of weight on an inclined plane. When an object rests on an incline that makes an angle θ with the horizontal, the force of gravity acting on the object is divided into two components: A force acting perpendicular to the plane, w ⊥, and a force acting parallel to the plane, 32. Three forces act on a box on an inclined plane as shown in the diagram. [Vectors are not drawn to scale.] If the box is at rest, the net force acting on it is equal to A. the weight B. the normal force C. friction D. zero 33. In the diagram below, a 10.-kilogram block is at rest on a plane inclined at 15 to the horizontal. The diagram at the right depicts the two forces acting upon a crate that is positioned on an inclined plane (assumed to be friction-free). As shown in the diagram, there are always at least two forces acting upon any object that is positioned on an inclined plane - the force of gravity and the normal force.

Inclined plane diagram. A typical force diagram of an object on an inclined plane. Now that we have an understanding of the vocabulary and formulas necessary to calculate the acceleration of an object on an inclined ... The free-body diagram shows the forces acting upon a 100-kg crate that is sliding down an inclined plane. The plane is inclined at an angle of 30 degrees. The coefficient of friction between the crate and the incline is 0.3. Determine the net force and acceleration of the crate. Solution: An inclined plane is basically a ramp. It is a flat surface that is sloped rather than horizontal. When solving problems about objects on an incline, it is convenient to choose a coordinate system with axes parallel and perpendicular to the surface as shown in Fig. 1. ... body diagram Rotated free This video introduces and explains both free body diagrams and objects on an inclined plane for A Level Physics.A free body diagram is used to display the fo...

The Free-Body Diagrams for Inclined Planes Concept Builder challenges a learner to utilize an understanding of force types in order to construct a free-body diagram for an object moving along an inclined plane. Learners select force arrows from an arrow bank and label the arrows with a force type. Unknown forces on inclined planes [Textbook] The diagram shows a particle in equilibrium on an inclined plane under the forces shown. Find the magnitude of the force 𝑃 and the size of the angle 𝛼. 𝑃 𝑁 2 𝑁 30° 5 𝑁 8 𝑁 𝛼 30° Recall that I recommend using dotted labelled arrow for the components of forces in diagrams ... Consider the following diagram: Example: Masses 1 and 2 are on a double inclined plane, with angels of theta and alpha to the horizontal and static coefficients acting on each of the blocks. The trick is that there are different ways that the system can move, depending on high angle is higher and which block weighs more. ... 60 seconds. Q. Three forces act on a box in an inclined plane as shown in the diagram below. [Vectors are not drawn to scale.] If the box is at rest, the net force acting on it is equal to. answer choices. the weight. the normal force. friction.

Solution a). Free Body Diagram The box is the small blue point. In the diagram below, W is the weight of the box, N the normal force exerted by the inclined plane on the box, F a is the force applied to have the box in equilibrium and F s the force of friction opposite F a. b) The box is at rest, hence its acceleration is equal to 0, therefore the sum of all forces acting on the box is equal ... Voronoi Diagrams with Cones; Juggling 13 Balls; Static and Kinetic Friction on an Inclined Plane Description This is a simulation of the motion of an object on an inclined plane. The incline angle can be varied from 0 to 90 degrees. The forces acting on the object: gravity, normal force of the incline, and friction are represented as vectors. Calculating the direction of friction on an inclined plane/Determining the fate of a round body on an inclined plane Hot Network Questions If one Starship can transport 100 people to Mars, how many could it safely land near Mercury's north pole after one Hohmann-like transfer? An inclined plane is a form of simple machine that consists of a sloping surface with one end higher than the other. They are generally used for raising and lowering a load over a vertical...

Leg Press and the Spanish Inquisition

The free-body diagram is also shown, with the forces split into components parallel and perpendicular to the inclined plane. Because there is no acceleration, any coordinate system is fine - a system parallel and perpendicular to the ramp is pretty convenient, though, because two of the forces are along those directions.

Free Body Diagram Inclined Plane With Friction - Diagram Media

An inclined plane is a type of cable railway used on some canals for raising boats between different water levels. Boats may be conveyed afloat, in caissons, or may be carried in cradles or slings.. An inclined plane is quicker and wastes less water than a flight of canal locks, but is more costly to install and operate.A development of the idea is the water slope.

black and gray airplane seats

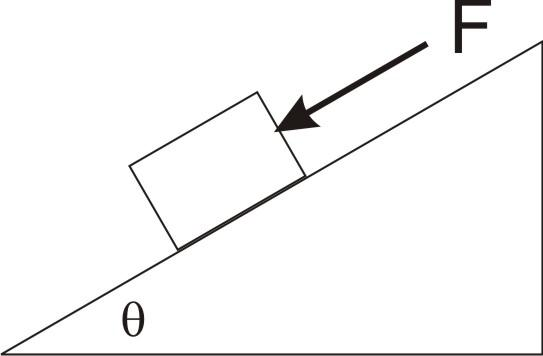

Following the usual notation, the forces acting on a body on an inclined plane are shown in figure 1. W is the weight of the body (W = mg), N is the normal force due to the plane, f is the frictional force, and P is the applied force present when a string is attached to the body to pull it up the plane.
